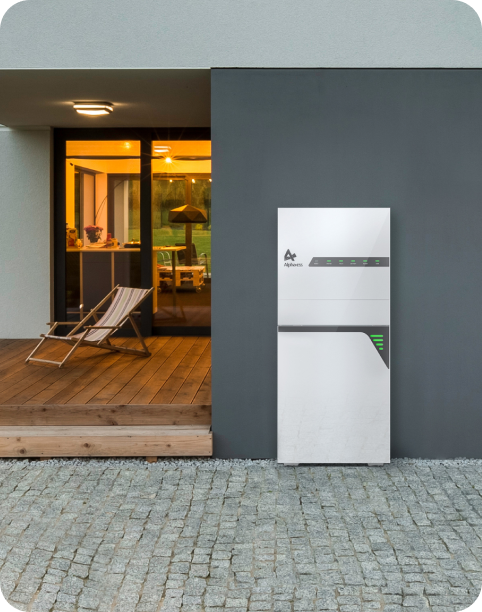

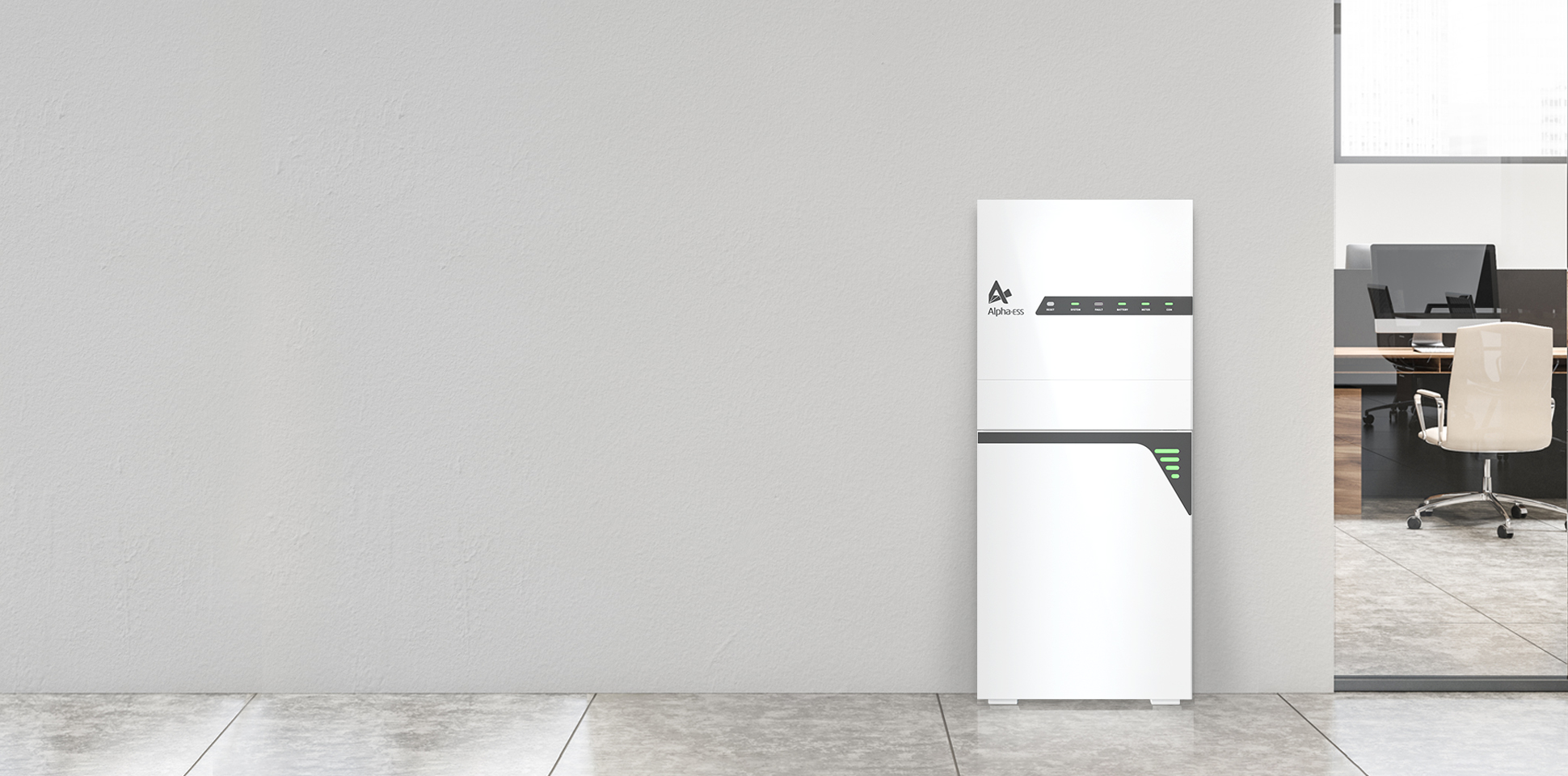

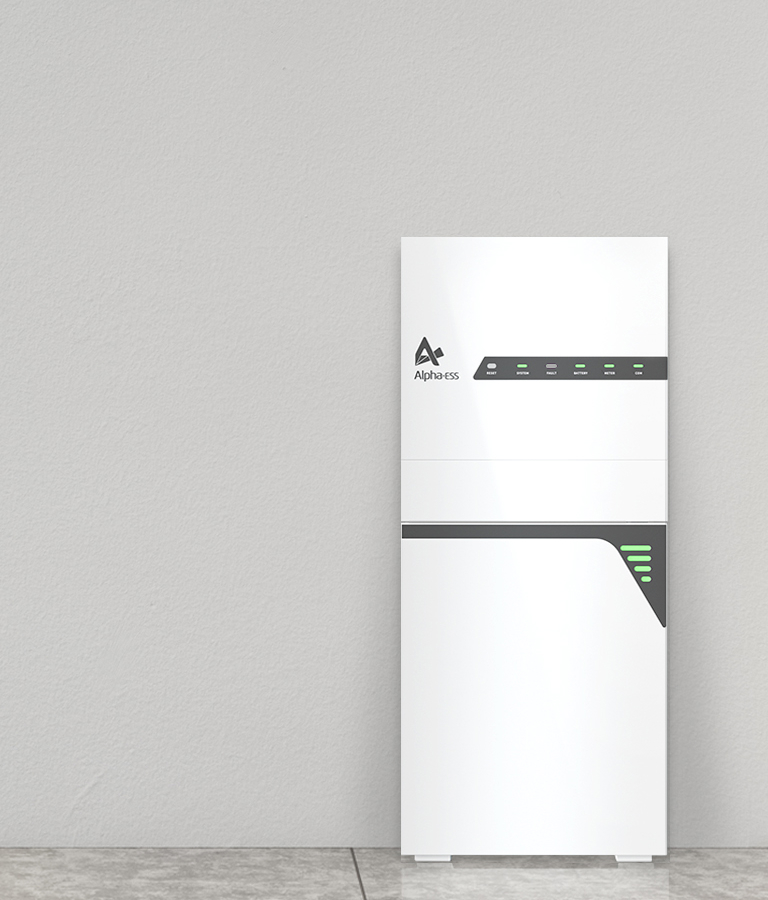

SMILE-T10-HV

10 kW

8.2 - 49.2 kWh

This 10kW energy storage system comes with 8.2kWh high voltage battery modules. This three-phase warrior is using the same battery module with SMILE-S6-HV; its Max. PV input is 16kW, which can maximize the potential of your system.

  • cobaltfree-527.svg

FEATURES

  • ThreePhase.svg

    Three-Phase Output

  • icon_huaban1.png

    High Voltage &
    High Efficiency

  • PVGeneration.svg

    160% PV Input

  • RapidShutdown.svg

    Three Phase Backup

SPECS

  • SMILE-T10-HV.png
    • Max. AC Output Power

      10 kW

    • Capacity Range

      8.2 - 49.2 kWh

    • Battery Chemistry

      LFP (LiFePO₄)

    • Max. Charging/Discharging Current

      40 A

    • Depth of Discharge (DoD)

      95%

    • Operating Temperature Range

      -10 °C ~ 50 °C

    • IP Protection

      IP65 (Outdoor)

    • Warranty

      10 Years Product Warranty,
      10 Years Battery Performance Warranty

BATTERY MODULE

Lego-style modular design, easy installation and expansion to meet different requirements.

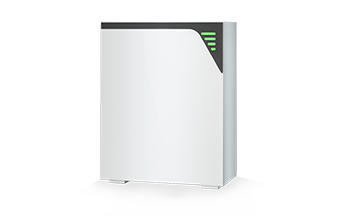

SMILE-BAT-8.2PH

  • Module Capacity

    8.2 kWh

  • Cycle Life

    10 000

  • Expansion

    1 ~ 6 in parallel
