Hybrid Inverter
AC-Coupling

SMILE-G3-S3.6/S5

3.68 / 5 kW

4.0 - 60.6 kWh

YOUR ALMIGHTY KNIGHT
This residential ESS comes with a 3.68kW or 5kW hybrid single-phase inverter and 10kWh battery modules. It can capture more precise data to meet stricter VPP requirements. Compared to other products, it offers superior performance in off-grid scenarios.

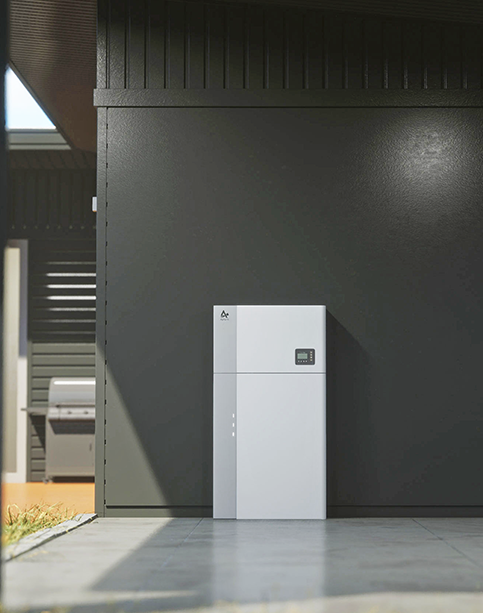

SMILE-G3-B5

5 kW

10.1 - 60.5 kWh

This ESS comes with a 5kW single-phase AC-coupled inverter and 10kWh battery modules. With VPP readiness and fast FCAS capabilities, the system can quickly respond to frequency deviations in the grid. It also features easy installation and low maintenance.

FEATURES

200% PV Input
FAST FCAS
Easy Installation &
Low Maintenance
Support Dual Power Supply
(Grid & Diesel Generator)

SPECS

- Model

  SMILE-G3-S3.6
- Coupling

  Hybrid
- Nominal Output Power

  3.68 kW
- Capacity Range

  4.0 - 16.0 kWh
- Depth of Discharge

  95%
- Battery Chemistry

  LFP (LiFePO₄)
- Max. PV Input Power

  7.36 kW
- IP Protection

  IP65 (Outdoor)
- Warranty

  5 Years Product Warranty,
  10 Years Battery Performance Warranty
Datasheet
- Model

  SMILE-G3-S5
- Coupling

  Hybrid
- Nominal Output Power

  5 kW
- Capacity Range

  10.1 - 60.6 kWh
- Depth of Discharge

  95%
- Battery Chemistry

  LFP (LiFePO₄)
- Max. PV Input Power

  10 kW
- IP Protection

  IP65 (Outdoor)
- Warranty

  5 Years Product Warranty,
  10 Years Battery Performance Warranty
Datasheet
- Model

  SMILE-G3-B5
- Coupling

  AC
- Nominal Output Power

  5 kW
- Capacity Range

  10.1 - 60.6 kWh
- Depth of Discharge

  95%
- Battery Chemistry

  LFP (LiFePO₄)
- Max. PV Input Power

  N/A
- IP Protection

  IP65 (Outdoor)
- Warranty

  5 Years Product Warranty,
  10 Years Battery Performance Warranty
Datasheet
