  • 3 kW

  • 5 kW

SMILE-B3-PLUS

3 kW

5.04 ~ 30.24 kWh

SMILE-B3-PLUS, specially designed for retrofit. Cost-effective, super easy to install, and scalable.
This 3kW AC-coupled solution with 5.04kWh built-in battery is available for all retrofit requirements, with a capacity expanded to 30.24kWh.

  • cobaltfree-489-21.svg

SMILE-S5/B5

5 kW

5.04 ~ 30.24 kWh

SMILE-S5/B5, 5kW inverter with 5kWh built-in battery is available for all single phase residential requirements, with a capacity expanded to 30.24 kWh

  • cobaltfree-489-478.svg

FEATURES

  • Inverters-422.svg

    Continuous 3kW Backup

  • All-in-one.svg

    All-in-one Module

  • VPPReady-769.svg

    VPP Ready

  • Powerful.svg

    Slim but Powerful

  • 6269808f69201.svg

    Fit for All PV Inverters

  • Easyinstallation.svg

    Easy Installation & Maintenance

  • Retrofit-1.svg

    Built-in Battery

SPECS

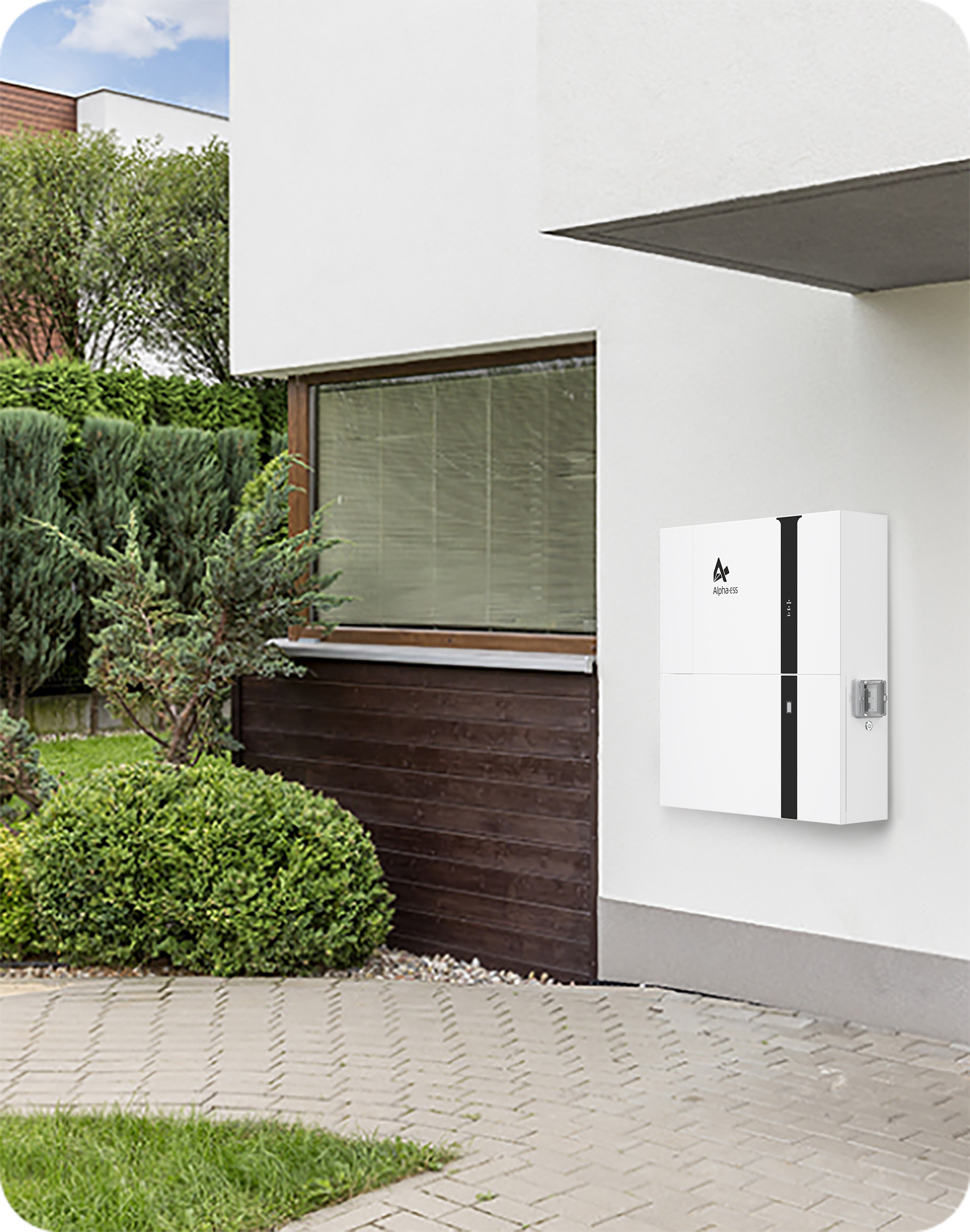

  • SMILE-B3-PLUS.jpg

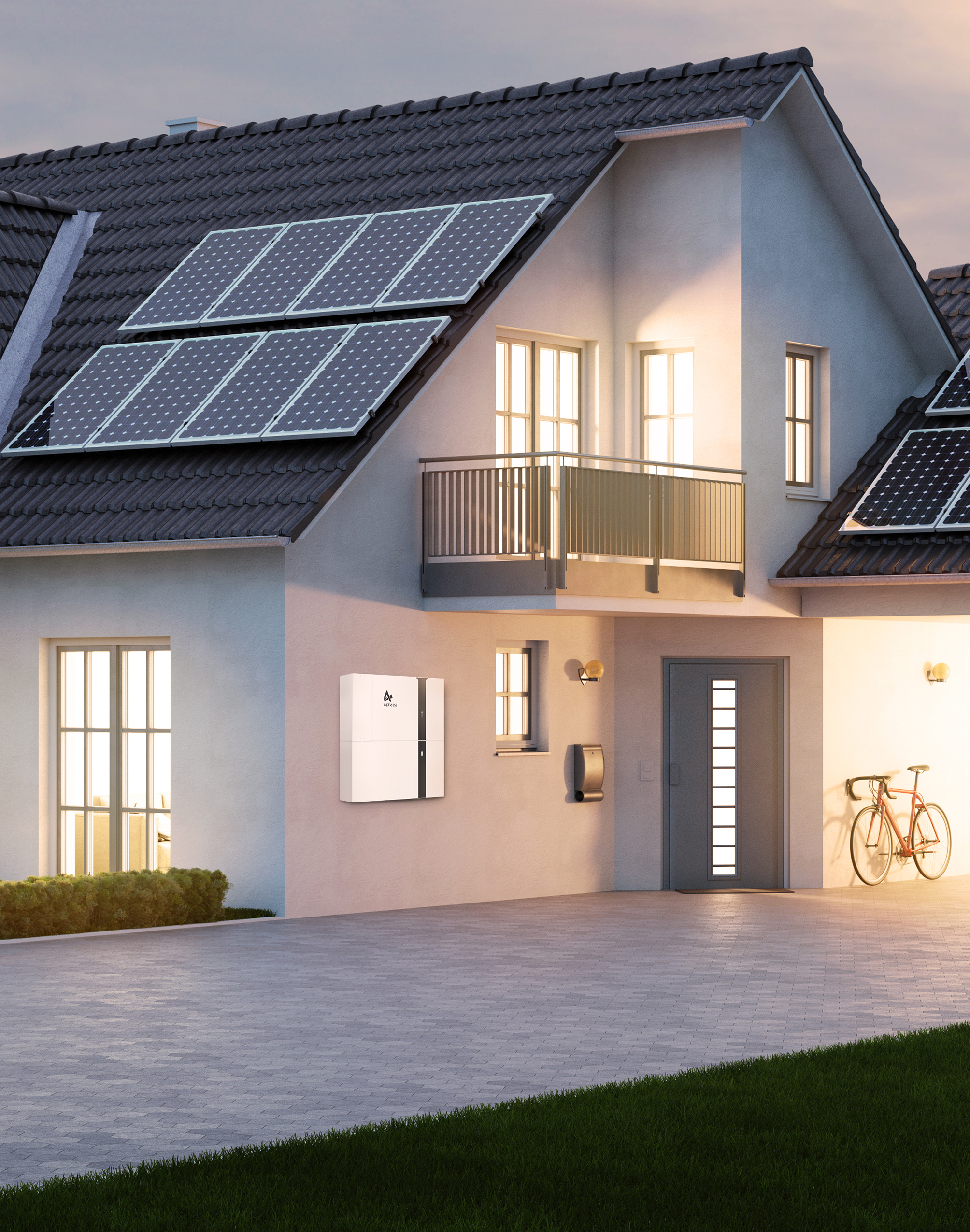

  • SMILE-S5-178.jpg
    • Model

      SMILE-B3-PLUS

    • Max. AC Output Power

      3 kW

    • Capacity Range

      5.04 - 30.24 kWh

    • Max. Charging/Discharging Current

      60 A

    • Depth of Discharge (DoD)

      95%

    • Dimensions (W x D x H)

      640 x 250 x 725 mm

    • Operating Temperature Range

      -10 °C ~ 50 °C

    • IP Protection

      IP65 (Outdoor)

    • Warranty

      5 Years Product Warranty,
      10 Years Battery Performance Warranty

    • Model

      SMILE-S5/B5

    • Max. AC Output Power

      5 kW

    • Capacity Range

      5.04 - 30.24 kWh

    • Max. Charging/Discharging Current

      100 A

    • Depth of Discharge (DoD)

      95%

    • Dimensions (W x D x H)

      640 x 250 x 350 mm

    • Operating Temperature Range

      -10 °C ~ 50 °C

    • IP Protection

      IP65 (Outdoor)

    • Warranty

      5 Years Product Warranty,
      10 Years Battery Performance Warranty

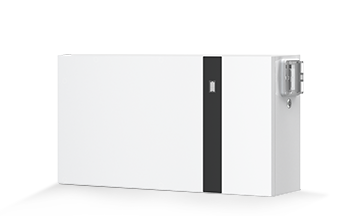

BATTERY MODULE

Lego-style modular design, easy installation and expansion to meet different requirements.


SMILE-BAT-5P

  • Module Capacity

    5.04 kWh

  • DoD

    95%

  • Expansion

    1 ~ 5 in parallel
