SMILE5

Our Bestselling 5kW VPP-Ready System! Maximise your energy with the power of a 13.3kWh battery and the versatility of Australia’s favourite hybrid inverter.

High Compatibility
UPS Ability
VPP Ready
Classic Design
SMILE5

Our Bestselling 5kW VPP-Ready System! Maximise your energy with the power of a 13.3kWh battery and the versatility of Australia’s favourite hybrid inverter.

High Compatibility
UPS Ability
VPP Ready
Classic Design
Product Introduction

Phase:Single Phase
Rated Output Power:5 kW
Max. PV Input Current:15 A / 15 A
Max. PV Input Power:7.5 kW
MPPT Number:2
Max. Input Strings Number per MPPT:2+1
Capacity Range:13.3 - 80 kWh

Product Introduction

Phase:Single Phase
Rated Output Power:5 kW
Max. PV Input Current:15 A / 15 A
Max. PV Input Power:7.5 kW
MPPT Number:2
Max. Input Strings Number per MPPT:2+1
Capacity Range:13.3 - 80 kWh

Battery Compatible Model
Battery Technical Specification

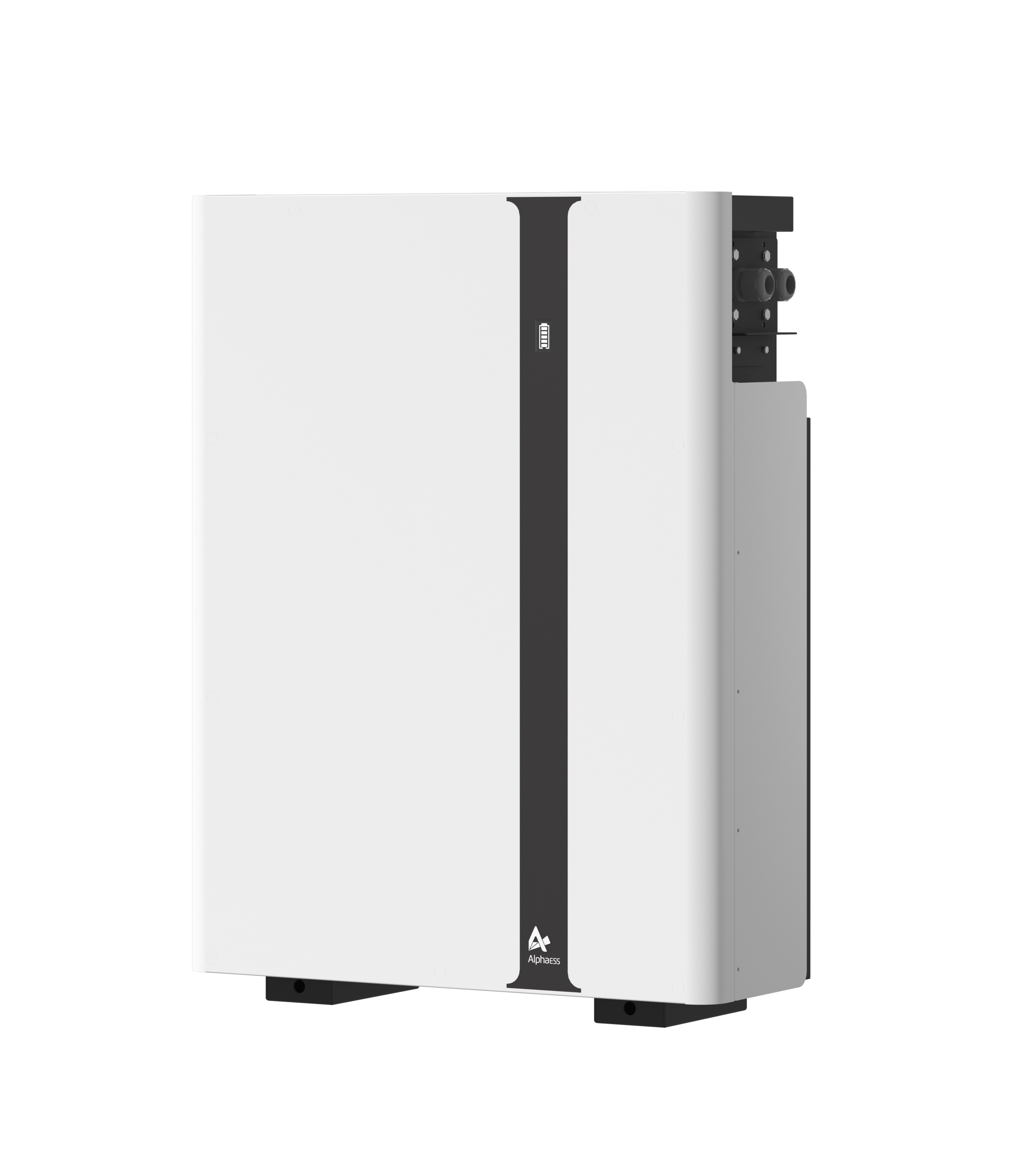

SMILE5-BAT-13.3P

SMILE5-BAT-13.3P

Module Model
SMILE5-BAT-13.3P
Energy Capacity
13.3 kWh
Modules Connection
1 - 6 in parallel
Max. Charging / Discharging Current
100 A / 100 A
Operating Temperature Range
-10 ~ 50℃
IP Protection
IP65
Dimension (W x D x H)
610 x 236 x 816 mm
Weight
121 kg
Product Documents

Click any of the categories to find the documents in our online service center.

System Datasheet Monitoring App User Manual
Battery Datasheet
Installation Manual
Warranty
To Order

Contact our trusted distributors for product purchase.

Our Distributor
Case Studies
