Certified Safety
TÜV-certified and tested to UL 9540A standards for advanced system safety.
VPP-Ready System
Integrated with 30+ VPP platforms for smarter energy participation.
UPS Backup Switching
Instant transition to backup power during grid outages.
High Solar Compatibility
Supports up to 16A per MPPT for broader PV module compatibility.
x
Product Introduction
Phase: Single Phase
Nominal Output Power: 5 kW
Max PV Input Curent: 16A per MPPT
MPPTs: 2
Max. PV Input Power: 10 kWp
Capacity Range: 9.3 - 37.2 kWh (95% DoD)
Backup: UPS
x

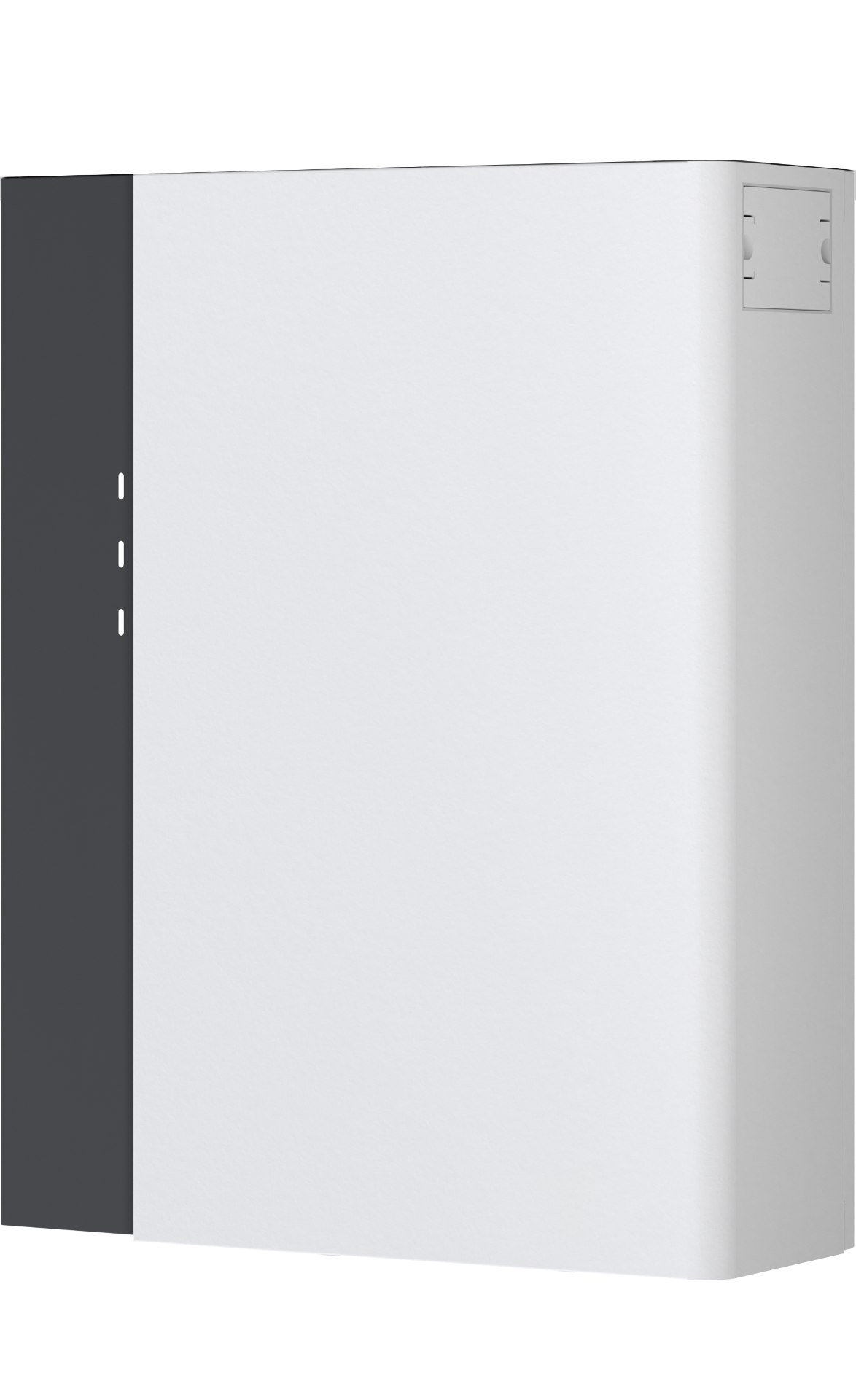

Compatible Battery Model
x
Battery Technical Specification
-
Module ModelSMILE-M-BAT-9.3S
-
Nominal Capacity9.3 kWh
-
Modules Connection1 - 4 in series
-
Max.Charging / Discharging Current52.5 A / 52.5 A
-
Operating Temperature Range-20 ~ 50℃
-
IP ProtectionIP65
-
Dimensions (W x H x D)610 x 634 x 210 mm
-
Weight81 kg
-
Short-circuit Current6 kA
-
Max DC VoltsSeen on the battery label
